NiroTherm® | Stainless steel

System description

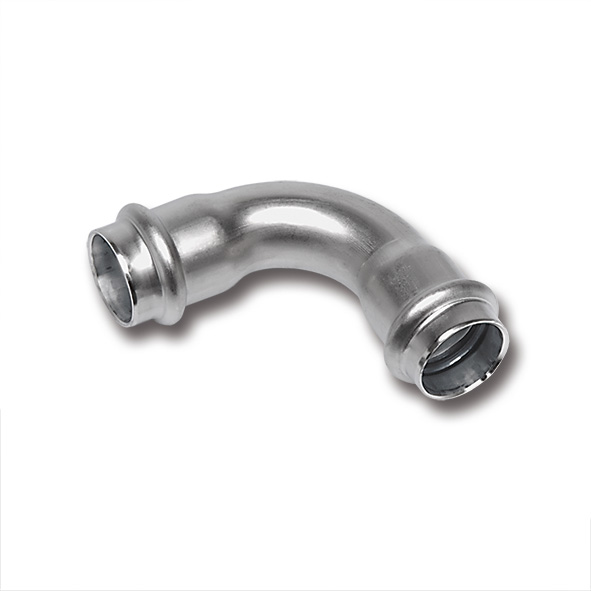

The innovative piping system NiroTherm® combines high-quality press fittings with a black sealing ring made from EPDM (=ethylene propylene diem rubber) and NiroTherm® stainless steel system pipes.

AISI 304: Corrosion-resistant material for heating & cooling!

The fittings and pipes is produced from the material 1.4301 (AISI 304). Due to the well-known corrosion resistance of stainless steel, NiroTherm® offers installers therefore a real alternative compared to conventional steels when it comes to closed systems in humid atmospheres such as screed. Since it needs considerably less isolation against humidity*, the installation is faster and labour costs accordingly lower.

With production started in 2007 and many million articles sold and installed since then, SANHA® has by far the longest market experience with both the material and the products themselves.

Note: From July 2024, the 91000 and 98000 series fittings will have new dimensions. These will be published in the download area. Please do not use an insertion depth marking template for the 91000 and 98000 series. Push the fitting onto the pipe until you feel resistance and mark the insertion depth.

Marking of NiroTherm®

In addition to the system description, NiroTherm® system press fittings are marked on the outside with a red dot.

No interference with laquering & varnish

NiroTherm® fittings are also available in a special silicone-, fat- and oil-free version that does not interfere with laquering e.g. in the automotive or chemical industry. They come with EPDM sealing ring and in separate packaging.

*This does not affect thermal insulation necessitated by national energy efficiency laws.

Operating conditions for the NiroTherm® press system
Water, aqueous solutions, technical gases (non toxic, non flammable), d ≤ 168 mm
Operating pressure	16 bar
Operating temperature (EPDM)	-30 °C - +120 °C
Pipe thread: R/Rp thread according to EN 10226, Fastening thread: G-thread (union nut) according to ISO 228

Features

combipress® =

Tool compatibility: pressable with press jaws and slings with original SA, V and M contour up to and including 54 mm
Leak path feature (certified forced leakage before pressing) in combination with
Push & Stay function for safe, reliable installation in every position

First class material, lower labour cost.

NiroTherm® is especially useful where carbon steel systems cannot be installed or need to be heavily protected against corrosion. NiroTherm® needs less protection as the material itself offers an additional layer of safety.

Quick installation, no risk of fire.

The connection with stainless steel pipes by cold pressing enables a fast, time-saving installation and eliminates the risk of fire during the process. NiroTherm® installation systems are therefore ideally suited for renovation work.

Exceptional flexibility

All dimensions from 15 to 168,3 mm
Reliable, permanent connection with various pipes:
NiroTherm® (1.4301/304)
SANHA®-Therm (carbon steel)
Thread according to EN 10226 and ISO7/1 Type R and Rp

Areas of application

Heating / Cooling

Technical gases

Compressed air (residual oil content max. 25 mg/m3 )

Rainwater

Treated water

More applications on demand.

Certificates

Country	Certifier	Download
		NiroSan® + NiroTherm® \| CSTB (FRA)
		Allgemeines Bauaufsichtliches Prüfzeugnis (Decken)
		Allgemeines Bauaufsichtliches Prüfzeugnis (Wände)
		NiroSan® + NiroTherm® \| RINA (global)
		NiroSan® + NiroTherm® \| ITB (POL)
		NiroSan® ECO, NiroSan® F, NiroTherm® \| PZH (POL)
		NiroTherm® \| TSU (SVK)
		NiroSan® + NiroSan® Gas + NiroSan® Industry \| ABS (global)

Show cases

Country	Reference	Product
	Wohnungen Nussdorferstraße, Wien	NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel
	Aldi, Genk	NiroTherm® \| Stainless steel
	Aldi, Kortessem	NiroTherm® \| Stainless steel
	Lidl, Oostende	NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel, Heating circuit manifolds
	OKay, Berlares	NiroTherm® \| Stainless steel
	Vyncolit, Gent	NiroTherm® \| Stainless steel
	Honeywell Praha, CZ	NiroTherm® \| Stainless steel
	Honeywell Praha, CZ	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel
	Alter Güterbahnhof, Freiburg	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel, PURAPRESS® \| Silicon bronze, SANHA-Press® \| Copper, Heating circuit manifolds, 3fit®-Press \| Silicon bronze & PPSU, NiroSan® Gas \| Stainless steel
	Arborea Marina Resort, Neustadt	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel, PURAPRESS® \| Silicon bronze, SANHA-Press® \| Copper, 3fit®-Press \| Silicon bronze & PPSU
	Bettenhaus, Köln	NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel
	Feuerwache Frechen	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel, PURAPRESS® \| Silicon bronze, SANHA-Press® \| Copper
	Freiraum Living, Freiburg	NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel, Heating connections
	Hampton by Hilton, Freiburg	NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel, Heating circuit manifolds, PURAFIT® \| Silicon bronze
	Holiday Inn, Köln	NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel
	Hyatt Place, Frankfurt	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel
	Johannes Gutenberg Universität, Mainz	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel, PURAPRESS® \| Silicon bronze
	KU80 Bamberg	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel
	Neubau BP Lingen	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel
	Raab Karcher, Essen	NiroTherm® \| Stainless steel, PURAPRESS® \| Silicon bronze
	Real Markt, Balingen	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel
	Seramun Diagnostica, Heidesee	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel
	Thyssen Krupp, Röhrsdorf bei Chemnitz	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel, NiroSan® Industry \| Stainless steel, NiroTherm® Industry \| Stainless steel
	Trainingszentrum Dynamo Dresden	NiroTherm® \| Stainless steel
	Wyndham Super 8, Freiburg	NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel, Heating circuit manifolds
	115 Viviendas RAG, Bilbao (Bilbao)	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel
	144 Viviendas Arragoiti, Bilbao (Bilbao)	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel
	47 Viviendas Eibar, Eibar (Gipúzcoa)	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel
	75+25 Viviendas Zapatari, San Sebastián	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel
	87+90 Viviendas Miribilla, Bilbao	NiroSan® \| Stainless steel, NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel
	Basauri 28, Bilbao (Bilbao)	NiroTherm® \| Stainless steel, SANHA®-Therm \| Carbon steel
	ProMessa, Deventer	NiroTherm® \| Stainless steel, PURAPRESS® \| Silicon bronze, SANHA-Press® \| Copper, RefHP® \| CuFe
