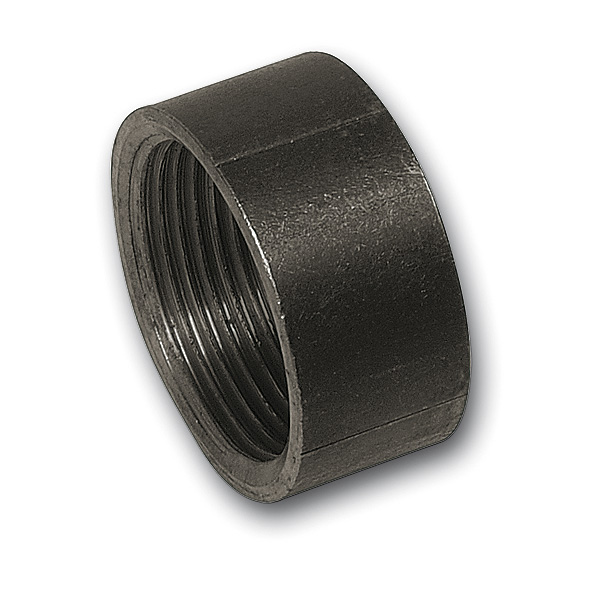

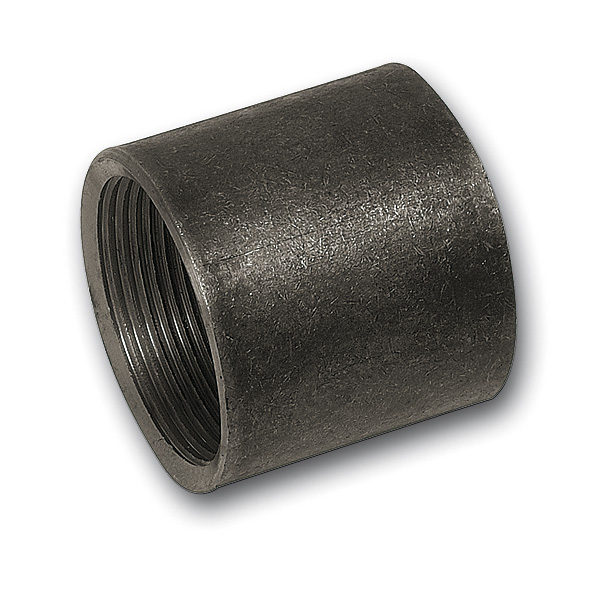

SANHA® couplings, half-couplings and pipe adaptors from mild steel are produced in black or galvanised versions and offer a wide range of economical options for the installation of heating and compressed air systems.
Wrought iron threaded fittings
SANHA® threaded fittings made of wrought iron (pipe nipples and sockets) are manufactured from unalloyed quality steel in accordance with DIN EN 10241 and DIN EN 10083-2. They are available in both black and galvanisedversions and, in addition to a proven material, offer quick and easy installation for heating, cooling water, solar or compressed air systems, especially since no elastomer or Centell seal is required.
Products
Filter
–
Operating conditions for SANHA® threaded fittings made of wrought iron |
|
---|---|
Dimensions | Operating pressure |
Water and aqueous solutions | |
1/8“…4“ |
25 bar bis 120 °C 20 bar bis 300 °C |
Technical gases (non-toxic, non-flammable) | |
1/8“…4“ | 1 bar / according to application |
Thread design: Pipe thread: R/Rp thread according to EN 10226, Mounting thread (ÜWM):G-thread according to ISO 228 |
Features
Installation
- Quick and safe mounting due to thread sealing in the thread.
- Thread according to EN 10226 or ISO7/1 type R and Rp.
- No elastomer seal or centellated seal DCU necessary. Alignment is possible when hemp is used.
Material
- Unalloyed quality steel according to DIN EN 10083-2.
- Steel grade: S195T to DIN EN 10027-1, material no. 1.0026 from welded tubes to DIN EN 10255.
- Black or hot-dip galvanised and free from such external and internal surface defects.
Extensive portfolio
- from 1/8” to 4” incl. galvanised fittings
Areas of application
Heating / Cooling
Solar systems
Compressed air (dry)
More applications on demand.
